Alunautic Windmill 12.00

Alunautic Windmill 12.00 – Crew vessel – Fast Response Support Vessel – Hydrographic – Patrol

Information about the Alunautic Windmill 12.00 – Crew vessel – Fast Response Support Vessel – Hydrographic – Patrol

General information:
Brand:Alunautic
Model:Deep V hull—12.00 FRSV—crew boat—fast
response—patrol—hydrografphic duties.U-shape aft.
Building year:2020
Function:Crew transport—coastal control
Lloyds approved for drawing and welding.
Final approval:ø MCA 280 MGM—60 NM
Specifications
Hull:Marine Grade Aluminium
Fender:Foam filled PU finished.
Dimensions:
Length:13.00 m
Beam:3.80 m
Dept at side:0.85 m
Draught app:0.95 m
Gross tonnage / Nett tonnage approx.:8.5 Ton
Capacity :
Fuel:2 x 500 L
Crew:2 @ suspended seats.
Passengers:8 persons seating ( other arrangement to be discussed).
Performance:
Max speed: Approx 33 Knots
Propulsion system:
Engine:Twin Volvo Penta D3 300 - twin Volvo Stern drive
Other information
Auxiliary equipment:Basic E-system with 4 batteries and battery switches– shore power 12– 230 Volt plus charger.
Hydraulic steering: Seastar.
Fire pro in engine room.
Twin Dometic AC roof units with diesel generator.

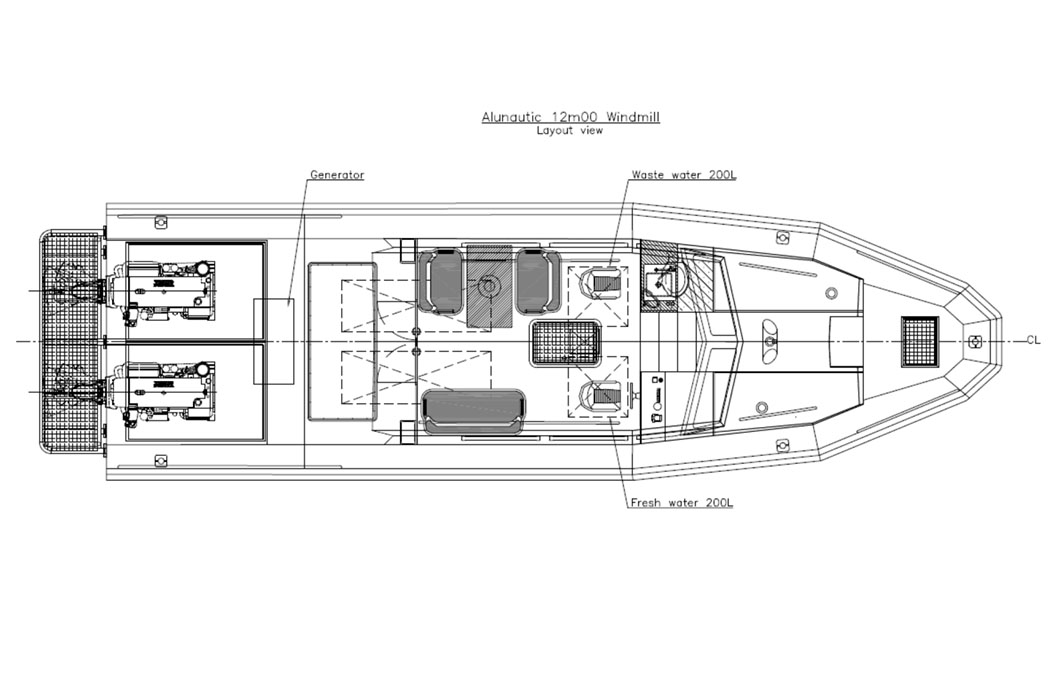

Deck layout:Deck is self draining.
Deck: Aluminium diamond plate.
Lifting eyes : 4 pcs.
Mast with navigation lighting, antenna, radar
Nautical and communication equipment:Raymarine echo sounder, GPS, ø Radar, AIS.
Raymarine VHF Radio 2 x plus ø handheld VHF radio.
MF/HF radio.
ø Navtex receiver,
ø SART transporder, GMDSS approved
ø EPIRB. GMDSS approved
Various:Search light roof unit with remote control.
Deck crane;
Cabin with toilet and sink, bed and desk.
Electrical anchor winch with anchor, chain and line
Fire extinguishers.
Swimming ladder
Superstructure coated in orange with 2 component UC2K glass coat with 10 years UV protection. Under water hull coated.
ø = Optional
