Fibreshark Patrol 24.00

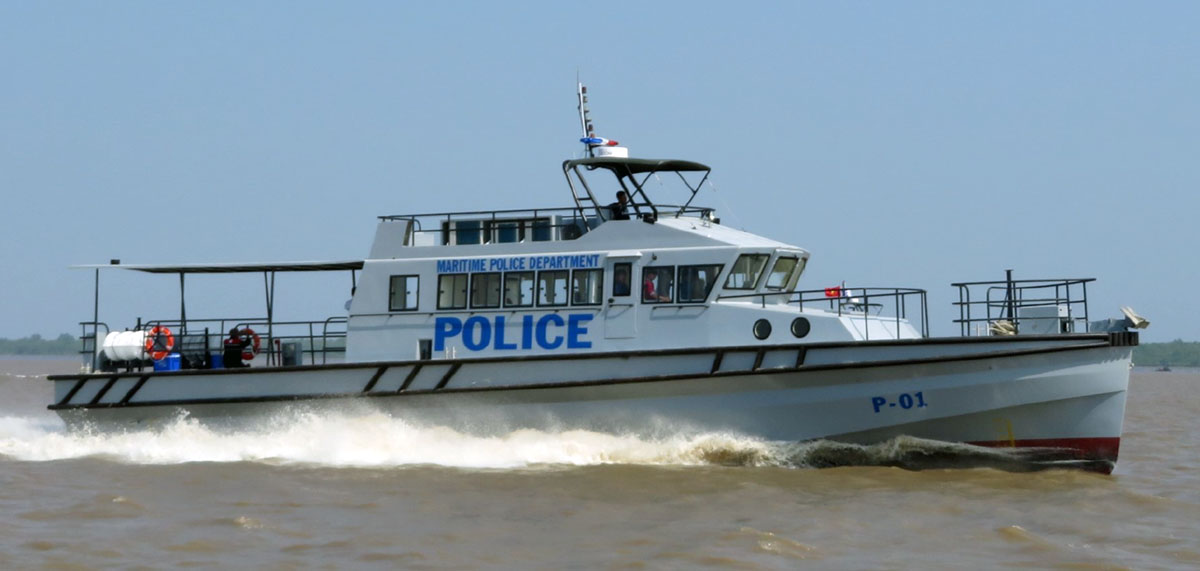

Information about the Fibreshark Patrol 24.00 – Patrol Vessel – Crew Vessel – Fast Response Support Vessel
| General information: | |
|---|---|
| Brand: | Fibreshark |
| Model: | Deep V hull—24.00 Patrol vessel - Crew boat |
| Building year: | 2020 |
| Function: | Crew transport—coastal control |
| Approval: | ø Bureau Vertitas or MCA 280 MGM - 60 NM |
| Specifications | |
| Hull: | GRP |
| Dimensions: | |
| Length: | 24.00 m |
| Beam: | 4.76 m |
| Dept: | 2.66 m |

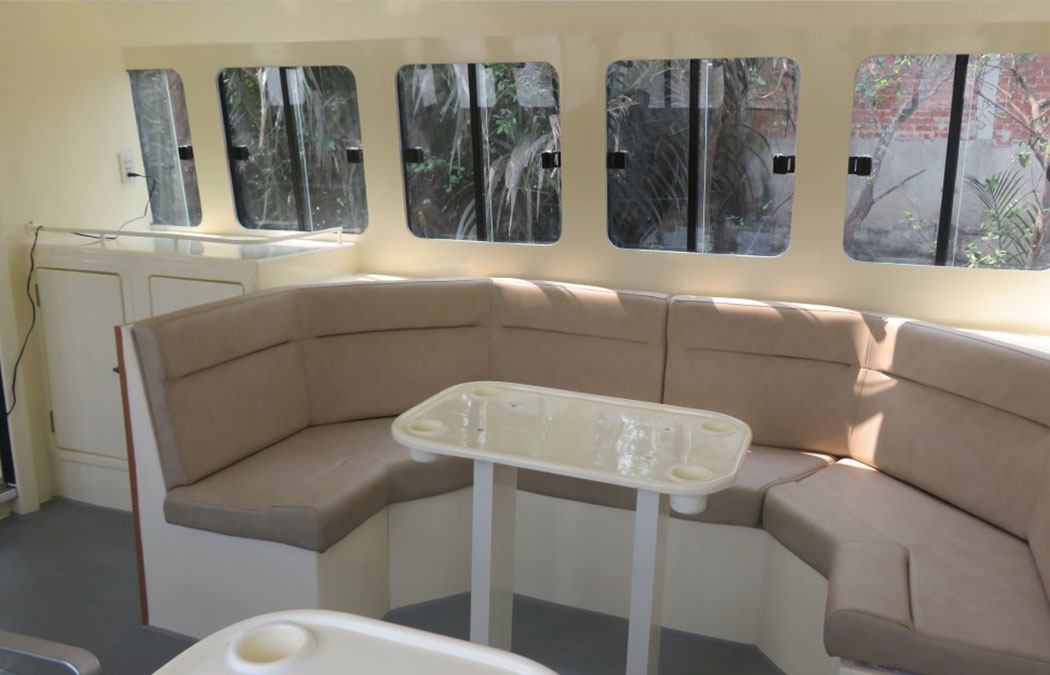

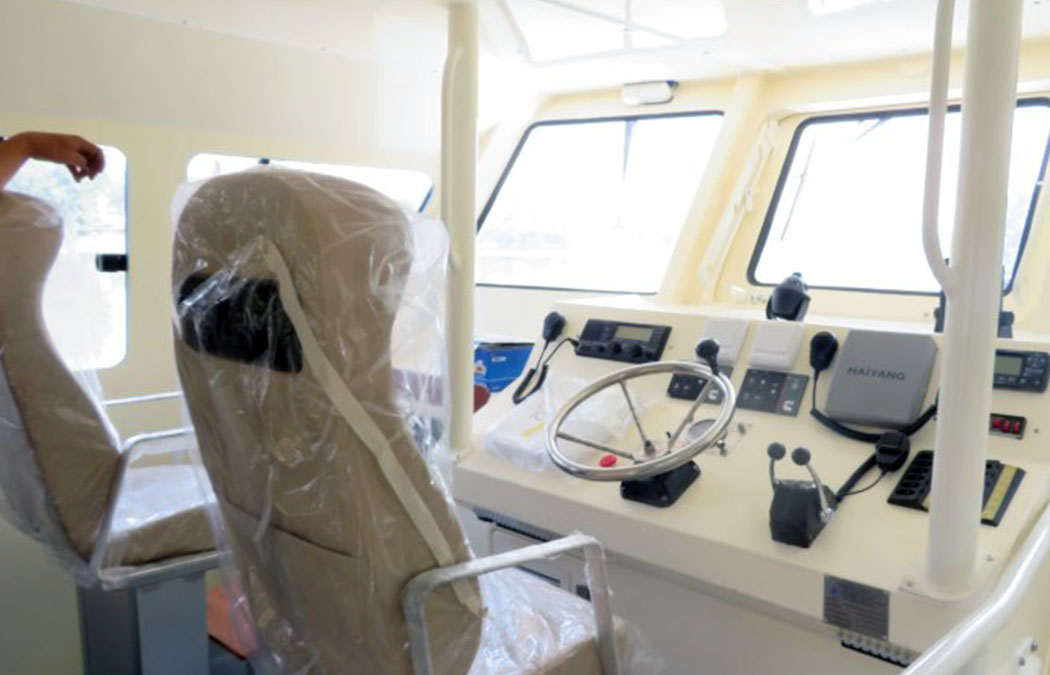

| Loading: | 20 persons including crew. Pilot room with seats—front compartment with seats and table—sleeping area with 8 beds for crew. |
| Capacity : | |
| Fuel: | 2 x 1000 L |
| Water: | 1 x 500 L |
| Performance: | |
| Max speed: | Approx 30 Knots |
| Propulsion system: | |
| Engines: | Twin Cumming QSK19M-800Hp - 2 x Gearbox ZF500-1A |
| Propulsion: | Fixed Propeller |
| Other information | |
|---|---|
| Auxiliary equipment: | Basic E-system with 4 x 200 Amp batteries and battery switches. Electric system 24Vdc and 220 V ac– shore power plus charger. 15KVA Generator Hydraulic steering: Fire pro in engine room. AC roof units 4 x |
| Deck layout: | Deck: Anti slide Safety railing—optional bimini cover—bollards Mast with navigation lighting, antenna, radar Option fly bridge with steering possibilities. |
| Nautical and communication equipment: | echo sounder, GPS, Radar, AIS. Raymarine VHF Radio 2 x plus handheld VHF radio. MF/HF radio. Navtex receiver, SART transporder, GMDSS approved EPIRB. GMDSS approved |
| Various: | Search light roof unit with remote control. Electrical anchor winch with anchor, chain and line Fire extinguishers. Toilet room with electrical toilet and sink. Ø= optional |
